Description

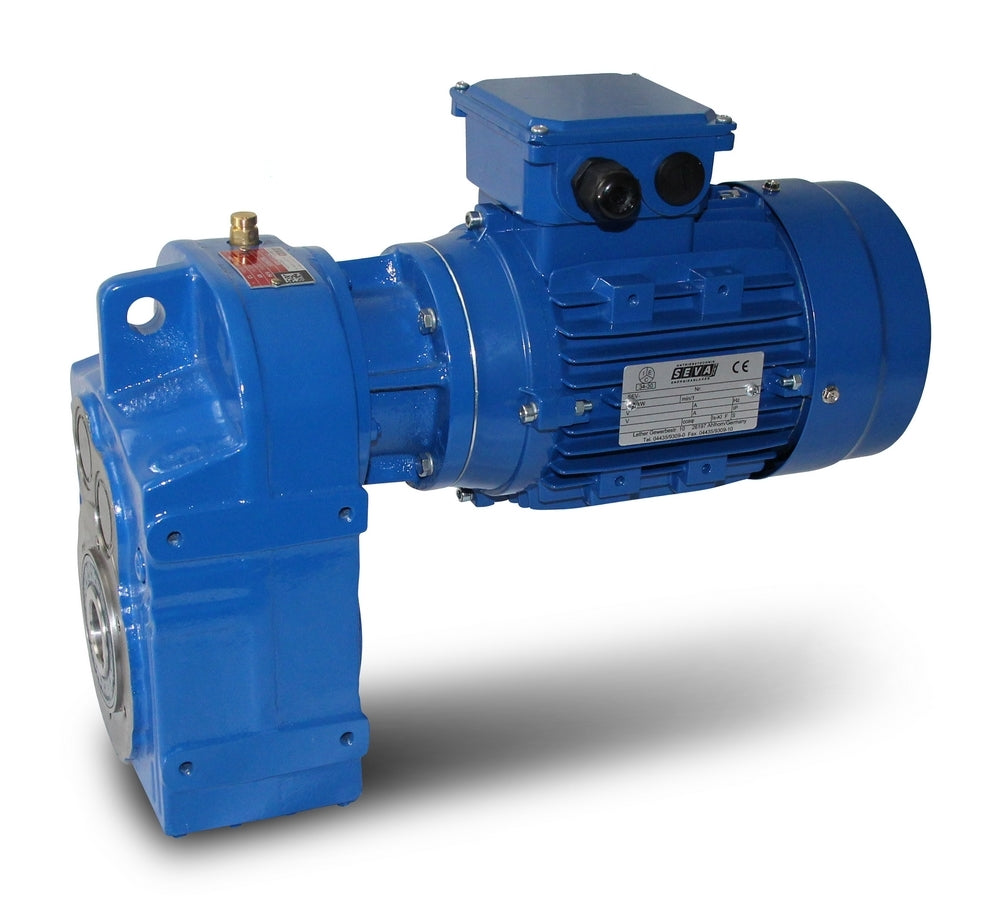

flat gear motor Flat gear motor SEV-DV172-63-4-0.12 kW-64 rpmFlat gear motor with IEC flange between gearbox + electric motor, Voltage = 3 x 230 400 V 50 Hz, 3 x 400 690 V 60 Hz ( 5% according to VDE 0530), frequency = 50 60 Hertz. Power= 0. 12 kW, speed (n)= 64 rpm, gear ratio (i)= 21. 79, torque (M)= 17 Nm, Operating factor (fs)= 12. 0, design= B3, hollow shaft= 30 mm, weight= 19 kg, color= RAL5010. Temperature sensor= 3 x PTC thermistors, operating mode= S1 100% ED, terminal box= top (rotatable). The geared
Flat gear motor with IEC flange between gearbox + electric motor,
Voltage = 3 x 230/400 V-50 Hz, 3 x 400/690 V-60 Hz (± 5% according to VDE 0530), frequency = 50/60 Hertz.
Power= 0.12 kW, speed (n²)= 64 rpm, gear ratio (i)= 21.79, torque (M²)= 17 Nm,
Operating factor (fs)= 12.0, design= B3, hollow shaft= 30 mm, weight= 19 kg, color= RAL5010.
Temperature sensor= 3 x PTC thermistors, operating mode= S1- 100% ED, terminal box= top (rotatable).
The geared motor is suitable for frequency converter operation and complies with IEC 60034-30:2008.
The parallel shaft gear can be operated in both directions of rotation and contains an oil filling upon delivery.
According to VDE 0105 and IEC 364, all work on the electric drive must be carried out by qualified personnel only.
For modifications or special designs, please send an inquiry.
When ordering, please select the desired installation position + version.
Important instructions
This drive is a custom-made product. Cancellation or revocation of the purchase is not possible!
All product photos are non-binding examples! Technical changes reserved.
